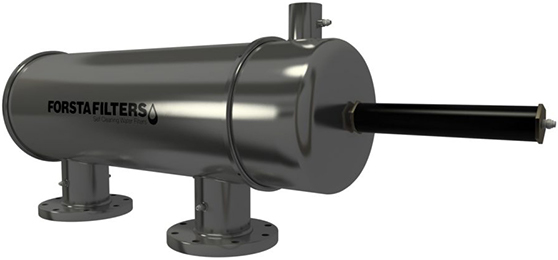

180C Series

Horizontal Clamp-Style Water Filter NSF 61 Certified

Boasts a more compact and lightweight alternative that offers a first-stage coarse protection screen, and a second-stage fine screen. 180C filter has the water-saving advantage of using a  1″ or 1.5″ flush valve.



See Details

Series

180

C

at Work

All Details at a Glance

How it Works - Tutorial

See the Forsta Filters 180C water filter in action.
View time: 2:40



180C Series - Clamp Style Water Filters

The 180C (clamp-style) filter boasts a more compact and lightweight alternative to the standard 180 series. The 180C series offers a first-stage coarse protection screen, and a second-stage fine screen. The 180C filter line accommodates simple online installation, with the water-saving advantage of using 1″ or 1.5″ flush valve. Flush volume is as little as 4-16 gallons per backwash, depending on the selected model. 180C filters are ideal for irrigation, municipal, or industrial applications where installation footprint, weight, or flush volume are of concern.



NSF 61 Certified

Specifications

US Metric
Strainer Max Flow Rate 1,000 gpm 227 m³/h
Operating Pressure 40 - 150 psi * 2.5 - 10 bar *
Max Tempreature 150º F * 65º C *
Screen Opening 5µ - 4,000µ
Flush Valve Size Single 1" or 1.5" 25 mm or 40 mm
Flush Duration 6-16 seconds
Flush Volume 6 - 27 gallons 23 - 101 liters
Material of Construction 304/316L Stainless or Super Duplex
*Higher pressure and temperature ratings available upon request

Filter Model Screen Area Max Flow Rate Connection Size CAD/PDF Files
  ft² cm² gpm m³/h in mm dwg step pdf
A2-180C 3 2787 200 45 2 50
A3-180C 3 2787 300 68 3 80
A4-108C 3 2787 500 114 4 100
A6-180C 3 2787 600 136 6 150
AS2-180C 2 1858 200 45 2 50
AS3-180C 2 1858 300 68 3 80
AS4-180C 2 1858 400 91 4 100
AXS2-180C 1 929 200 45 2 50
AXS3-180C 1 929 200 45 3 80
B2-180C 4 3716 200 45 2 50
B3-180C 4 3716 300 68 3 80
B4-180C 4 3716 500 114 4 100
B6-180C 4 3716 800 182 6 150
B8-180C 4 3716 800 182 8 200
C2-180C 5 4645 200 45 2 50
C3-180C 5 4645 300 68 3 80
C4-180C 5 4645 500 114 4 100
C6-180C 5 4645 1000 227 5 125
C8-180C 5 4645 1000 227 8 200
C10-180C 5 4645 1000 227 10 250
